| 起源の場所: | シンセン、中国 |
|---|---|
| ブランド名: | J&R |
| 証明: | CE, FCC, RoHS, ISO9001 |
| モデル番号: | JR210-1B |
| 最小注文数量: | 1部分 |
| 価格: | US$249-US$359 |
| パッケージの詳細: | J&Rの標準的なパッキング、真珠の綿、カートン |
| 受渡し時間: | 支払の後の3-7仕事日 |
| 支払条件: | L/C、T/T、ウェスタン・ユニオン、Paypal |
| 供給の能力: | 1ヶ月あたりの10000PCS |
| サイズ: | 300*180*161 （mm） | 色: | 赤いですかカスタマイズされる |
|---|---|---|---|
| 材料: | 冷間圧延された鋼鉄 | 機能: | コミュニケーション |
| 取付け: | 壁の土台 | 信号器の容積: | 90~95dB （A） 1つのmの間隔で |
| 温度: | 作動:-30°Cへの+65°C | 進入保護評価: | IP54-IP65 |
| 保証: | 2年 | 純重量: | 4つのkg |
| ハイライト: | ハイウェー緊急SOSのホットラインの電話,耐候性があるSOSのホットラインの電話,IP54鋼鉄天候の抵抗力がある電話 |
||
﹄Product Description﹃

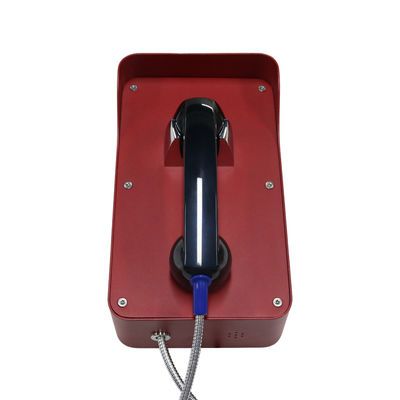

JR210-1B Weatherproof Highway Emergency Public SOS Hotline Telephone
Handset Telephone,One button for speed dial,Cold-rolled steel body,Red color(other colour on demand),
Unit size:300*180*161(mm)
Housed in a anti-vandal cold-rolled steel enclosure,wall-mounting
| Analogue Version | |
| Power Supply | From the analogue telephone network |
| Supply Voltage | 24 VDC to 65 VDC |
| Supply Current | 20 mA DC to 100 mA DC |
| Ringer Volume | - 80dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker) |
| Dialing Method | DTMF mode in accordance with ITU-T recommendation Q.23. |
| SIP Version | |
| Power Supply | PoE or 12V DC |
| Power Consumption | -Idle:1.5W -Active:1.8W |
| SIP Protocol | SIP 2.0 (RFC3261) |
| Support Codec | G.711 A/U, G.722 8000/16000, G.723, G.729 |
| Communication Type | Full duplex |
| Ringer Volume | - 90~95dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker) |
| Ambient conditions | |
| Protection Type | IP 66 as per EN60529 |
| Operating Temperature | -30°C to +70°C |
| Storage Temperature | -40°C to +75°C |
﹄Features﹃
Weatherproof Highway Emergency Public SOS Hotline Telephone
﹄Applications﹃
Weatherproof Highway Emergency Public SOS Hotline Telephone
This vandal resistant telephone is Ideal for Railway applications, Marine applications, Tunnels. Underground Mining, Firefighter, Industrial, Prisons, Jail, Parking lots, Hospitals, Guard Stations, Police stations, Bank halls, ATM machines, Stadiums, inside and outside building etc.
﹄Packing﹃
Weatherproof Highway Emergency Public SOS Hotline Telephone
| Unit Size | 204 *339 *196 (mm) |
| Carton Size | 200 *300 *440 (mm) |
| Packaging Materials | Pearl cotton, carton |
| Net Weight | 5 KG |
| Gross Weight | 6 KG |
