破壊者の抵抗力がある電話
Created with Pixso.

CRS SIPの反破壊者は壁に取り付けられた非常電話の活字を手で組んだ

CRS SIPの反破壊者は壁に取り付けられた非常電話の活字を手で組んだ

ブランド名: J&R
モデル番号: JR202-FK
MOQ: 1
価格: US$119 - US$250
支払条件: L/C、T/T、ウェスタン・ユニオン、Paypal
供給能力: 1ヶ月あたりの3000セット
詳細情報
起源の場所:
シンセン、広東省、中国
証明:
CE, FCC, RoSH, ISO9001
材料:
冷間圧延された鋼鉄かステンレス鋼
色:
灰色、黄色、赤またはカスタム化
進入保護:
IP55-IP65
受話器:
装甲コードが付いているABS材料
サイズ:
247 *130 *132 (mm)
動力を与えられる:
動力を与えられる電話回線かDC12V
版:
Analogue/SIP/GSM
保証:
2年
パッケージの詳細:
真珠の綿、カートン
供給の能力:
1ヶ月あたりの3000セット
ハイライト:

反破壊者の受話器の非常電話

,

CRSは非常電話の活字を手で組んだ

,

壁に取り付けられた破壊者の証拠の電話

製品説明




Detailed Presentation









Wall Mounting SIP Anti-Vandal Handset Emergency Telephone Waterproof Bank Phone





JR202-FK Vandal Resistant Handset Telephone ihas the characteristics of simple installation, easy handle, stable operation and strong compatibility. Phone accessories and phone shell color can be customized.



The telephone adopts stainless steel panel with strong vandal proof feature. The handset, keypad, circuit board and other accessories are made of multi-layer waterproof and dustproof materials.









 Casing Material Robust Cold-rolled steel body (CRS)
 Colors

Color Optional,Gray as standard

 Handset Material ABS material handset with stainless steel spiral cord
 Keypad

Weather sealed tactile digital keypad.

Chrome key and frame made of zinc alloy.

Vandal resistance.

 Temperature

Operating: -30°C to +65°C

Storing: -40°C to +75°C

 Weather Resistance IP65
 Ringing Tone Shrill warble tone 85 dBA at 1 metre typical
 Hook switch Electronic / magnetic with no visible moving parts
 M.T.B.F. Calculated to have an M.T.B.F. in excess of 50,000 hours using
 Weight Up to 4 kg depending on option













Technical Specification

Wall Mounting SIP Anti-Vandal Handset Emergency Telephone Waterproof Bank Phone

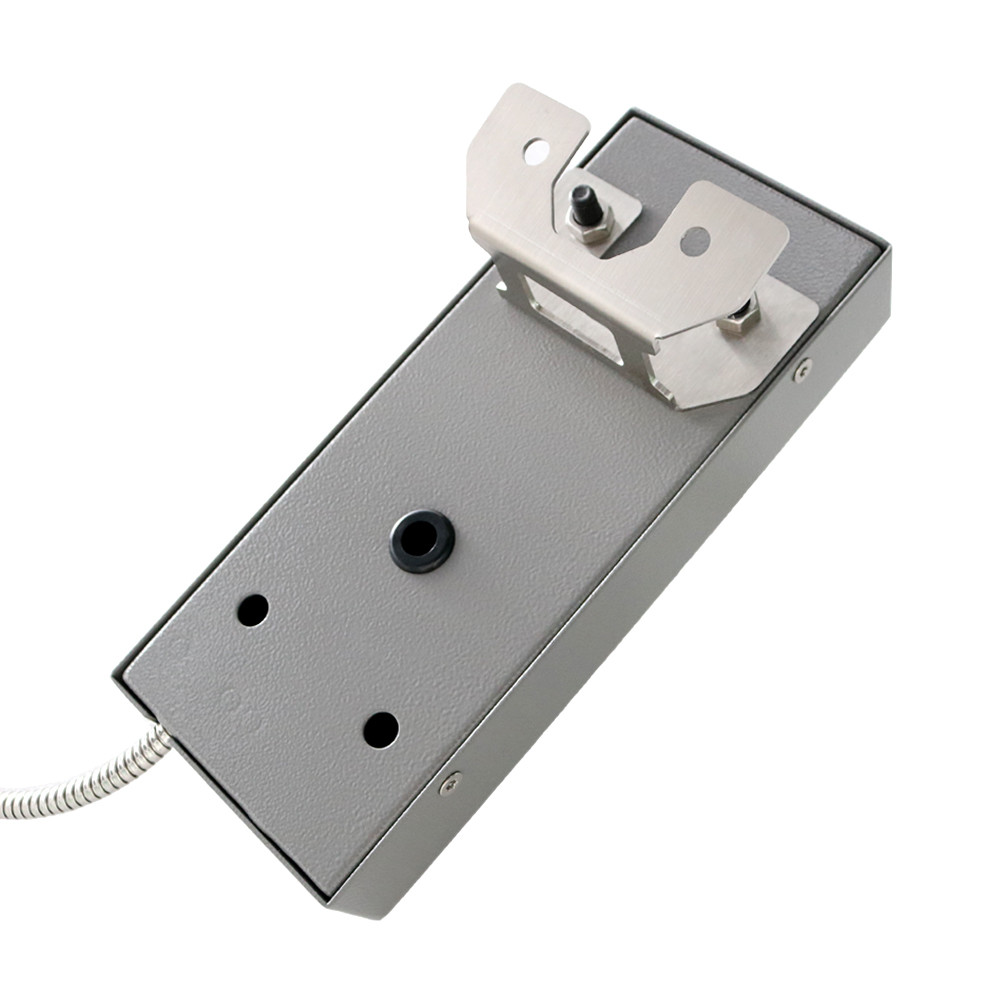

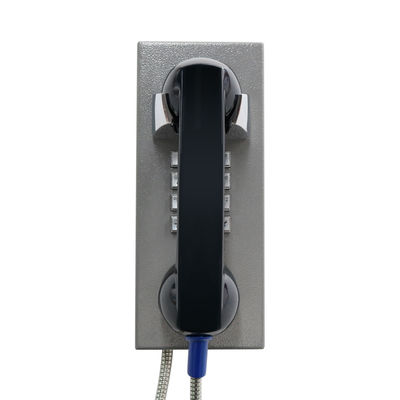

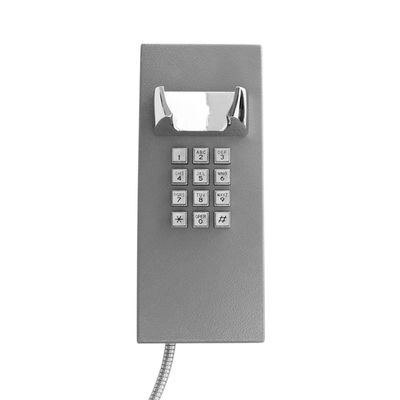

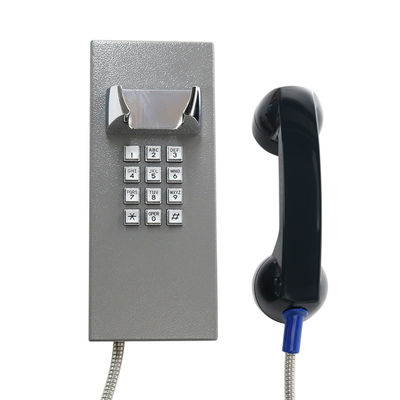

CRS SIPの反破壊者は壁に取り付けられた非常電話の活字を手で組んだ 1

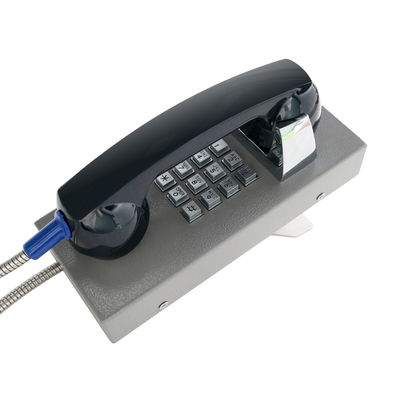

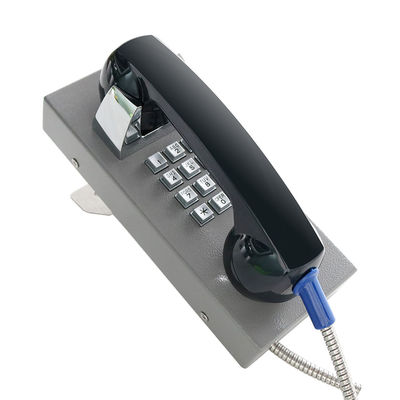

CRS SIPの反破壊者は壁に取り付けられた非常電話の活字を手で組んだ 2



Analogue Version
  Power Supply From the analogue telephone network
  Supply Voltage 24 VDC to 65 VDC
  Supply Current 20 mA DC to 100 mA DC
  Ringer Volume - 80dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)
  Dialing Method DTMF mode in accordance with ITU-T recommendation Q.23.



SIP Version
  Power Supply PoE or 12V DC
  Power Consumption -Idle:1.5W
-Active:1.8W
  SIP Protocol SIP 2.0 (RFC3261)
  Support Codec G.711 A/U, G.722 8000/16000, G.723, G.729
  Communication Type Full duplex
  Ringer Volume - 90~95dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)



Ambient conditions
  Protection Type IP 66 as per EN60529
  Operating Temperature -30°C to +70°C
  Storage Temperature -40°C to +75°C









Applications

Wall Mounting SIP Anti-Vandal Handset Emergency Telephone Waterproof Bank Phone





JR202-FK PSTN Wholesale Telephone With Keypad is suitable for tunnel, railway, underground mine, prison, guard room, bank and many other areas.



CRS SIPの反破壊者は壁に取り付けられた非常電話の活字を手で組んだ 3







Packing & Delivery

Wall Mounting SIP Anti-Vandal Handset Emergency Telephone Waterproof Bank Phone




CRS SIPの反破壊者は壁に取り付けられた非常電話の活字を手で組んだ 4



 Unit Size 240 *100 *106 (mm)
 Carton Size 340 *235 *165 (mm)
 Packaging Materials Pearl cotton, carton
 Net Weight 2.7 KG
 Gross Weight 3 KG



CRS SIPの反破壊者は壁に取り付けられた非常電話の活字を手で組んだ 5



Port Shenzhen, Guangdong
Lead Time
(If you finish the payment today, your order will ship out within the delivery date.)
Quantity(Sets) 1 2-500 >500
Est. Time(Days) 2 25 To be negotiated













Customised Accessories

Wall Mounting SIP Anti-Vandal Handset Emergency Telephone Waterproof Bank Phone







CRS SIPの反破壊者は壁に取り付けられた非常電話の活字を手で組んだ 6



J&R provide LOGO printing and accessories customization services.

We will also provide suitable solutions according to the needs of customers.



HOOK FUNCTION: Magnetic hooks for choice

KEYBOARD SHAPE: Round buttons and square buttons for choice

INDICATOR LAMP COLOR: Red, yellow, blue, green for choice

MOTHERBOARD MODEL: 2G/3G/4G/SIP/GSM for choice

HADSET CORD: Black curly handset cord or stainless steel spiral cord

If you have any custom requirements, please feel free to contact us.
